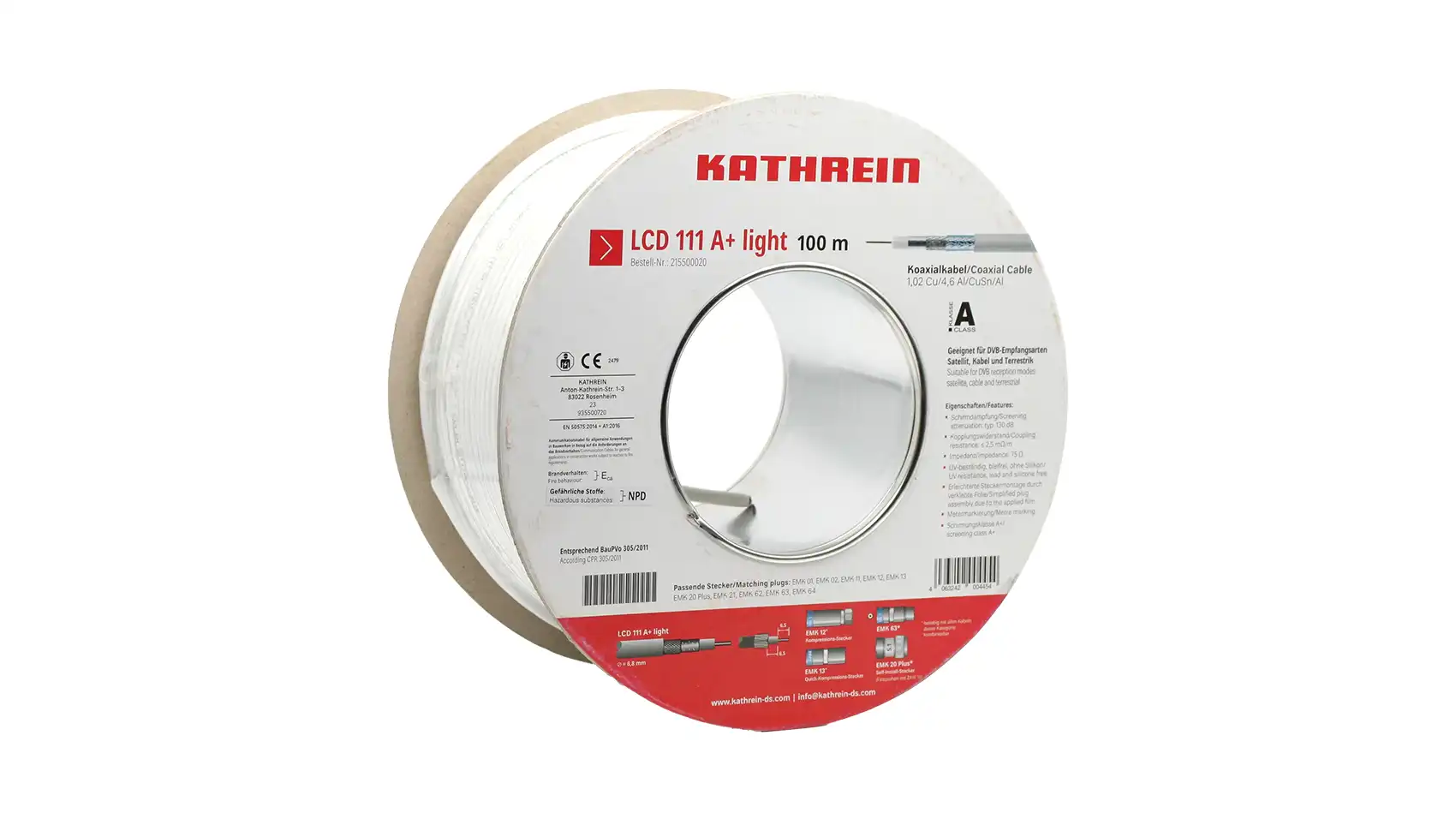

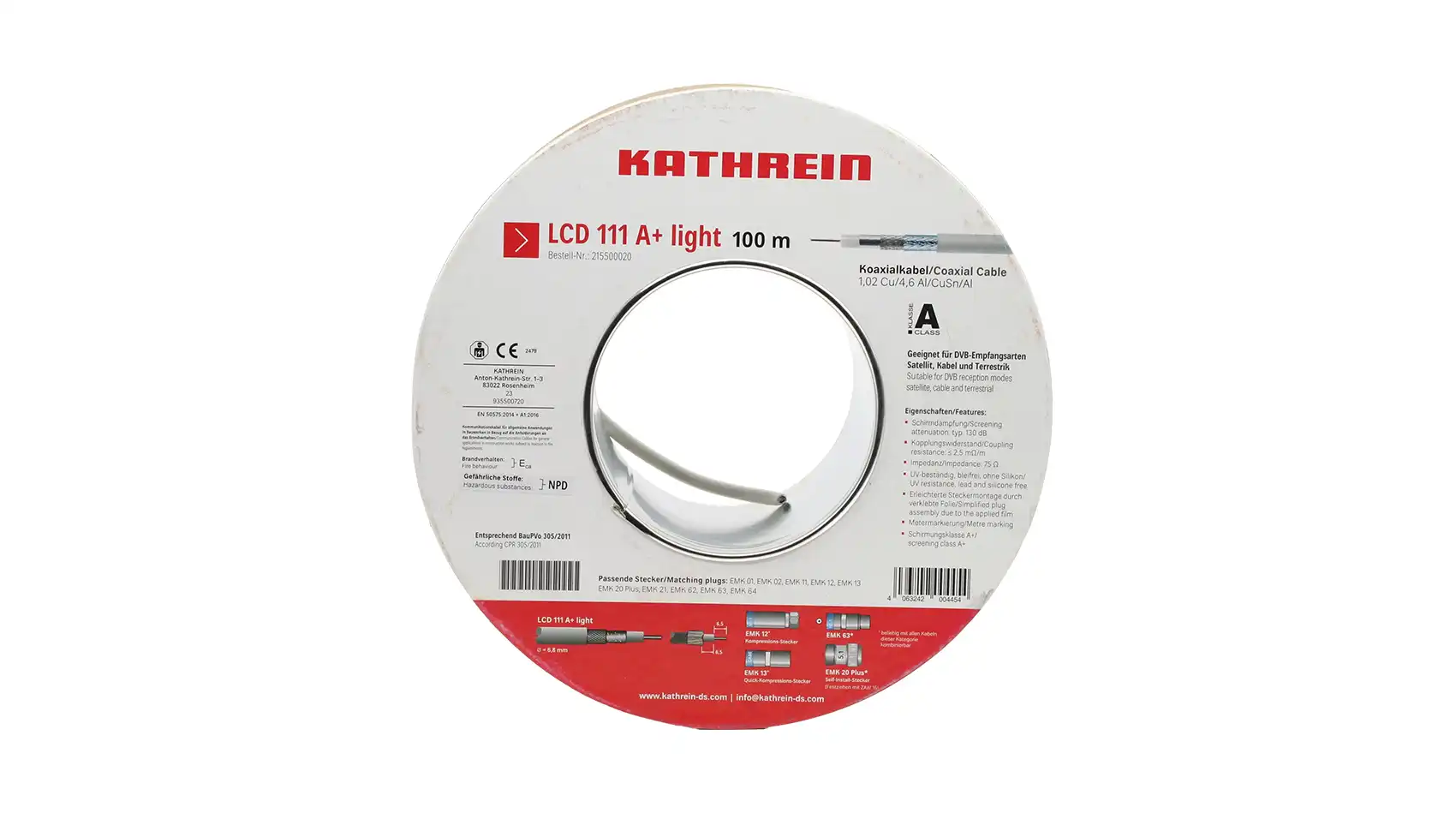

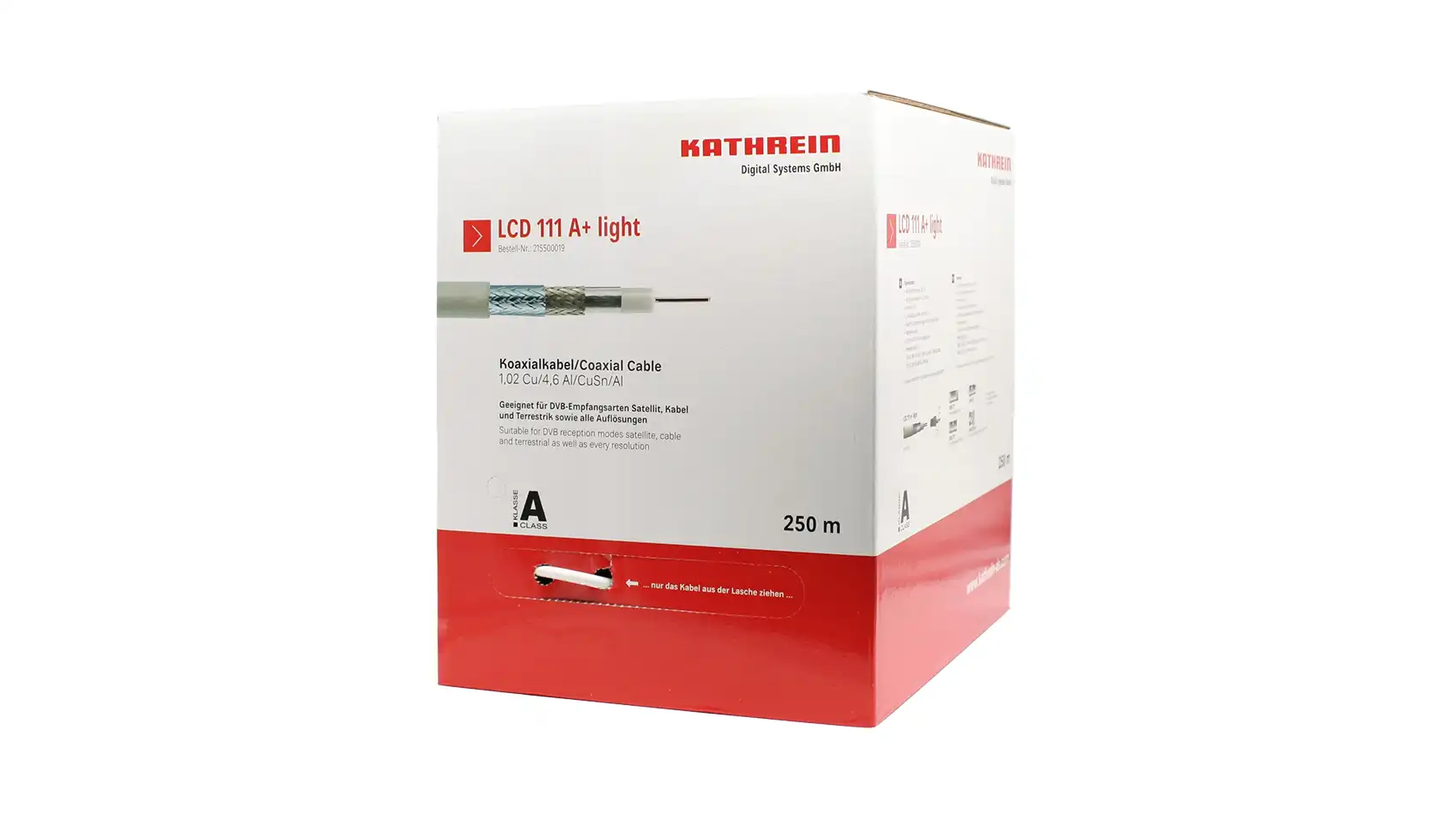

Coaxial cable Eca | 6,8 mm | White PVC | Shielding effectiveness typ. 135 dB | Shielding class A+ | Meter markings | Construction: 1,02 Cu/4,8 Al/CuSn/Al, foil-sealed
- Impedance: 75 Ω
- With meter markings
- Inner conductor: bare copper; outer conductor: triple shielding with tinned copper braid and two foil layers
- Low attenuation over long connection distances
- For home installation
- Lead-free, silicone-free; UV-resistant; not halogen-free
- Construction Products Regulation EU 305/2011 (EN 50575) Fire class: Eca
- Very high shielding effectiveness, typically 135 dB, and high protection against interference (LTE).
- Complies with EN 50117 / Shielding class A+
- Suitable plugs: EMK 01, EMK 02, EMK 25, EMK 26, EMK 63, EMK 64
| Type: | LCD 111 A+ light |
| Shielding class: | A+ |
| Fire class – BauPVO 305/2011: | Euroclass Eca |
| Installation area: | Inside |
| Inner conductor: | 1,02 mm Cu |
| Insulation: | 4,6 mm PE |
| External conductor: | 2 x Al/pet film – 1 x CuSn braid |
| Outer shell: | 6,8 mm white PVC |
| Bending radius: | typical > 34 mm |
| Shortening factor: | 0.85 |
| Attenuation at 5 MHz: | 1,3 dB/100 m |
| Attenuation at 50 MHz: | 4,3 dB/100 m |
| Attenuation at 100 MHz: | 6 dB/100 m |
| Attenuation at 450 MHz: | 12,9 dB/100 m |
| Attenuation at 860 MHz: | 18,2 dB/100 m |
| Attenuation at 1000 MHz: | 19,7 dB/100 m |
| Attenuation at 2150 MHz: | 29,9 dB/100 m |
| Attenuation at 2400 MHz: | 31,8 dB/100 m |
| Return loss 5 – 470 MHz: | ≥ 26 dB |
| Return loss 470 – 862 MHz: | ≥ 25 dB |
| Return loss 862 – 1000 MHz: | ≥ 23 dB |
| Return loss 1000 – 2150 MHz: | ≥ 20 dB |
| Shielding attenuation 30 – 3000 MHz typ.: | 135 dB |
| Coupling resistance 5 – 30 MHz: | ≤ 2,5 mOhm/m |
| DC resistance: | ≤ 34 Ω/km |
| Max. permissible tensile force: | 120 N |
| Permissible ambient temperature (installation): | -25 to +70 °C |
| Weight approx.: | 4,8 kg/100 m |
